One:Quick Share

SC-00DA

COMPATIBLE MODEL LIST(AS OF OCTOBER 2021)

• Standard SignageUH7F / UH7F-H (65”/55”/49”)
• UH5F / UH5F-H (98”/86”/75”/65”/55”/49”/43”)
• UM3DG / UM3F / UM3DF (65”/55”/49”/43”)
• UM3DG-H (98”/86”/75”)
• UL3G / UL3J (86”/75”/65”/55”/50”/43”)
• WP400 / WP401TV SignageUR640S / UT640S (86”/ 75”/ 65”/ 55”/50”/ 43”)
• STB-6500
• LED SignageLAEC015-GN

ONE:QUICK SHARE

• User SwitchingYesSplit ViewYes (Max. 4 Screen)
• Admin ModeYesSignage ControlYes
• SoundYes

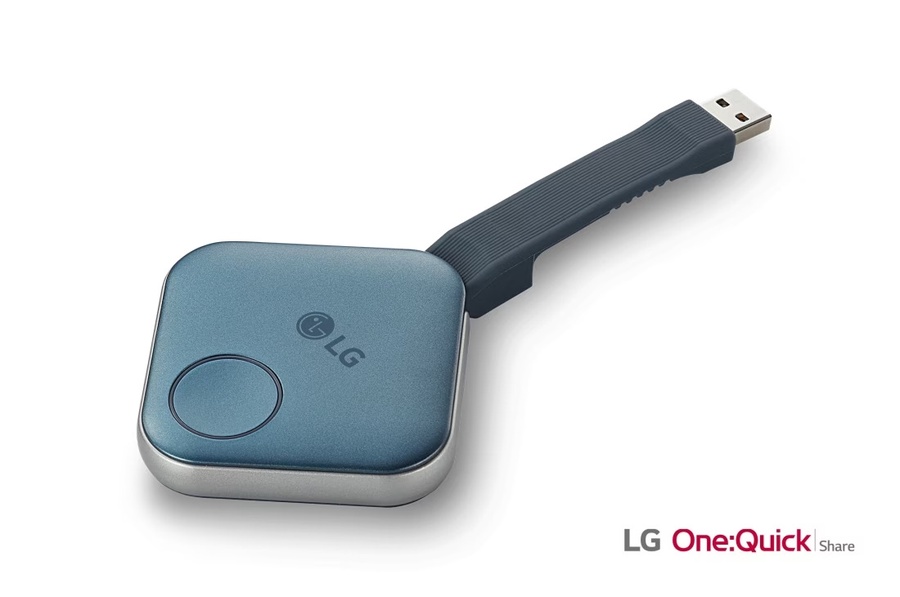

USB DONGLE HW(SC-00DA)

• Embedded OSLinuxCPUQuad-core CortexTM-A7
• Internal MemoryeMMC (4 GB) , DDR3 (512 MB)Wi-FiIEEE 802.11 a/b/g/n/ac
• VideoH.264ConnectivityUSB 2.0 Type A (1)
• Size (W × H × D)63.8 × 63.8 × 13.5 mm / USB cable (85.5 mm)Weight46 g
• Power Consumption2.0 W (Typ.), 2.5 W (Max.)Operating Temperature / Humidity0℃ to 40℃ / 0% to 85%

RECOMMENDED PC SPECIFICATION

• Operating System SupportWindows 8.1 64 bit (or Later Version)
• macOS 10.12 / 10.13 / 10.14 / 10.15 64 bitCPUIntel Sandy Bridge i3 (or Later Version)
• Skylake i3 / i5 / i6 (or Later Version)
• AMD Rygen 1st Generation (or Later Version)
• Memory8 GB↑
